Elecbee 13.3 Inch V1 HDMI VGA HD Display with Tempered Glass Capacitive Touch Screen 1920x1080 for NVIDIA Jetson Nano Raspberry Pi
SKU: EB0048426
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
MCU/SoC Model
13.3 Inch HDMI
CPU Architecture
TIONIMAGE0
Memory
Raspberry Pi OS / Linux
Debug Interface
USB, CAN, HDMI
Power Protection
12V
Shipping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Description
- Screen Size: 13.3 Inch
Precise details>>
Precise details:
Documents:
Manual: Click here to open
Working_with_Volumio: Click here to open
Device support:
Support Raspbian, ten touch, free drive

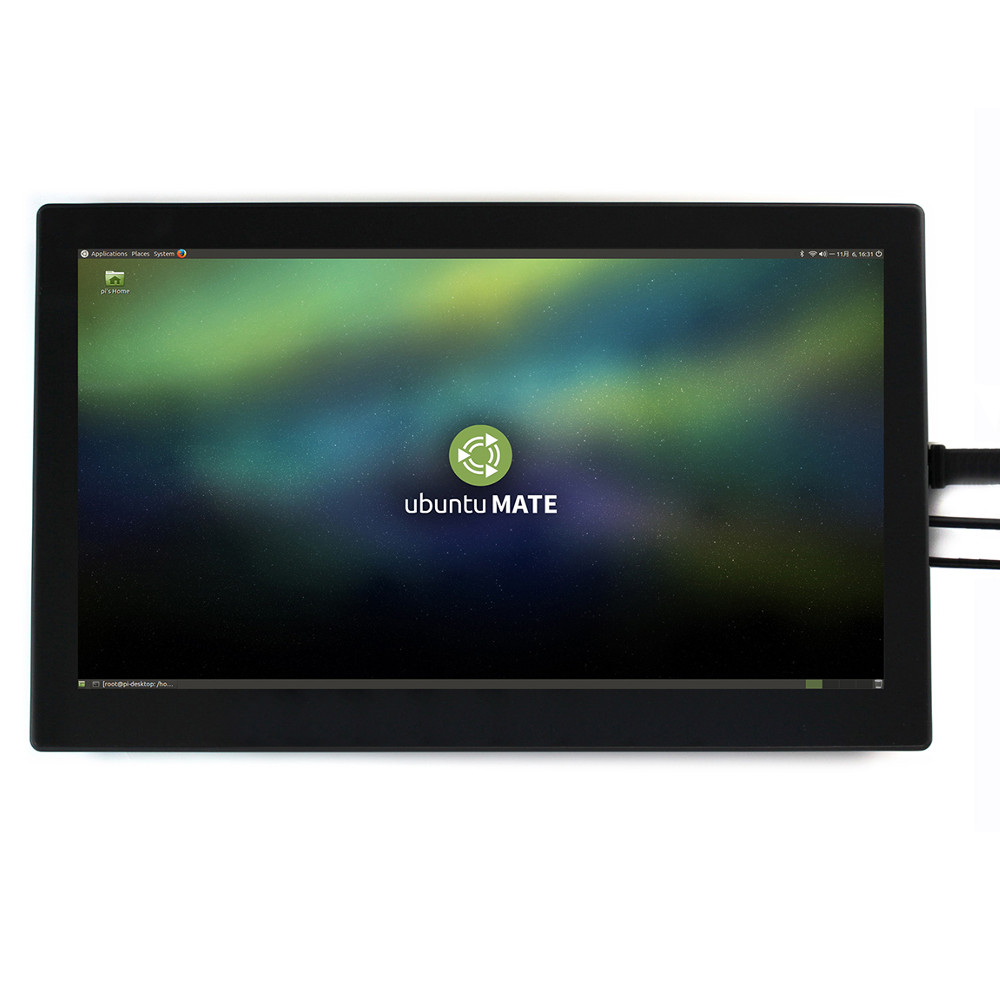

Support Ubuntu / Kali / WIN10 IoT, single touch, drive free
Support Retropie, free drive
Jetson Nano: Support Ubuntu, single touch, drive free

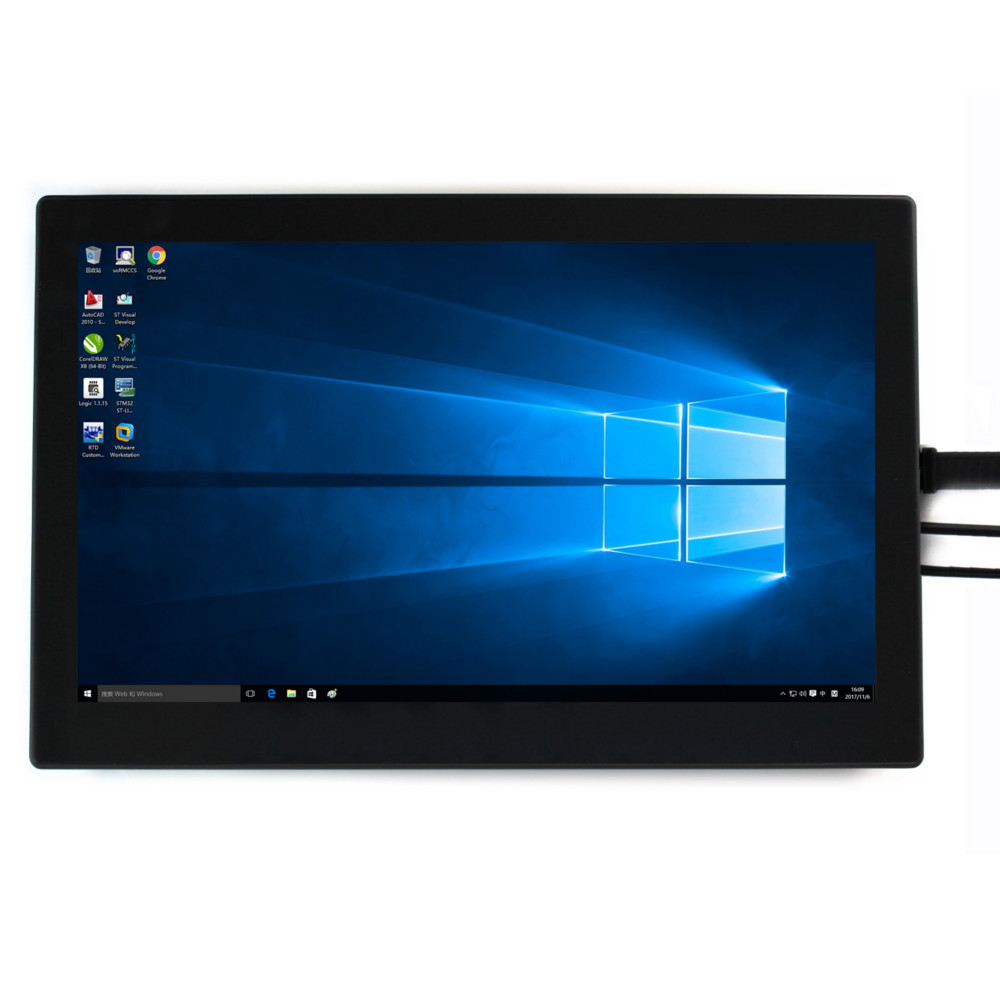

Computer: Support Windows 10 / 8.1 / 8 / 7, 10 touch, free drive
Game console: XBOX360, S0NY PSfour, Nintend0 switch, etc.
Specifications:
Display size: 13.3 inches
Interface: HDMI
Resolution: 1920×1080
Panel: IPS
Viewing angle: horizontal 178 ° / vertical 178 °
Touch type: capacitor
Interface: USB
Panel: tempered glass panel, hardness up to 6H
Touch points: 10 (hardware)
Sound equipment: black magnetic hi-fi speaker (built-in)
Audio interface: 3.5mm headphone jack (output only)
Shell bracket:

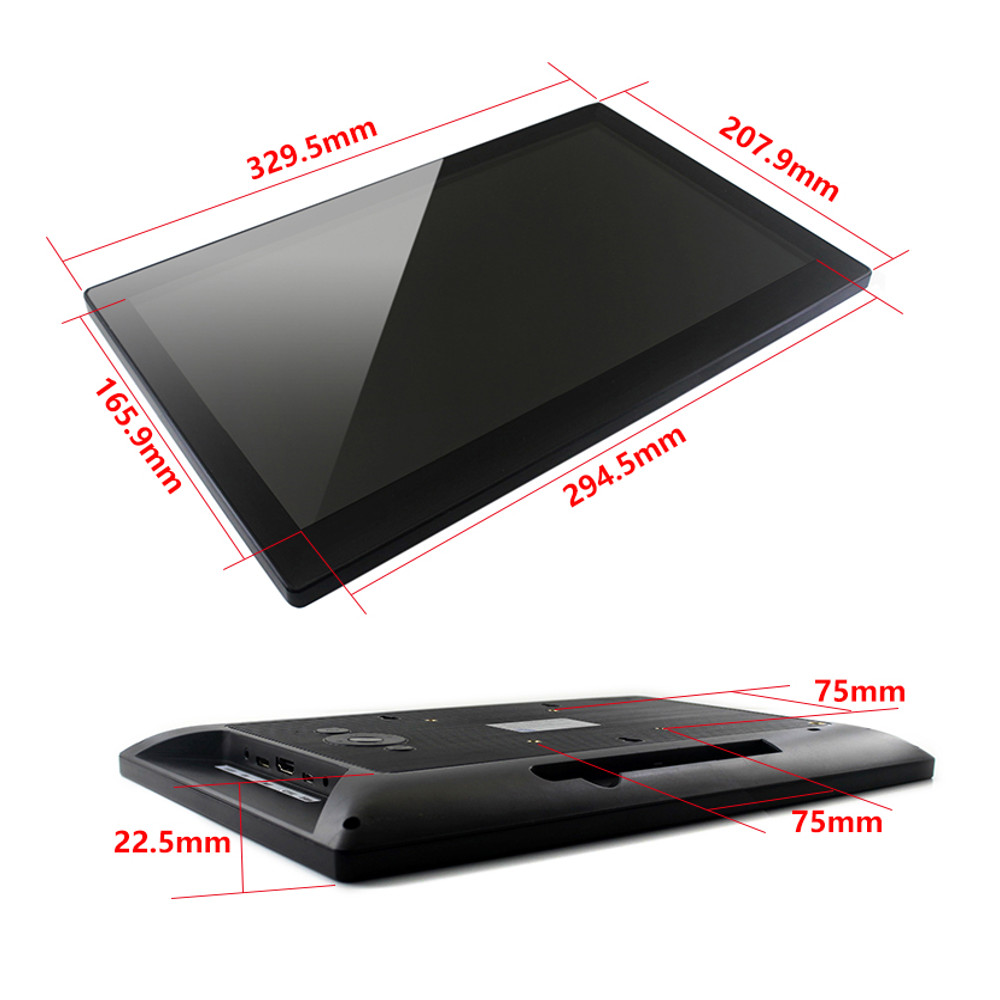

Enclosure: support universal wall mount, 75×75mm wall mounting hole on the back (M4 screw hole)
Bracket: comes with a 75° tilt angle bracket
Other:
Support multi-language OSD menu (can be used for power control, adjust brightness / contrast, etc.)
Support VGA video signal input (requires patch cord)
Note: The Raspberry Pi is not includes1 x 13.3inch HDMI LCD (H) (with housing)
1 x US plug 12V power adapter
1 x HDMI cable
1 x USB cable type A male to micro male
Support Raspbian, ten touch, free drive
Support Ubuntu / Kali / WIN10 IoT, single touch, drive free
Support Retropie, free drive
Jetson Nano: Support Ubuntu, single touch, drive free
Computer: Support Windows 10 / 8.1 / 8 / 7, 10 touch, free drive
Game console: XBOX360, S0NY PSfour, Nintend0 switch, etc.
Specifications:
Display size: 13.3 inches
Interface: HDMI
Resolution: 1920×1080
Panel: IPS
Viewing angle: horizontal 178 ° / vertical 178 °
Touch type: capacitor
Interface: USB
Panel: tempered glass panel, hardness up to 6H
Touch points: 10 (hardware)
Sound equipment: black magnetic hi-fi speaker (built-in)
Audio interface: 3.5mm headphone jack (output only)
Shell bracket:
Enclosure: support universal wall mount, 75×75mm wall mounting hole on the back (M4 screw hole)
Bracket: comes with a 75° tilt angle bracket
Other:
Support multi-language OSD menu (can be used for power control, adjust brightness / contrast, etc.)
Support VGA video signal input (requires patch cord)
Note: The Raspberry Pi is not includes1 x 13.3inch HDMI LCD (H) (with housing)
1 x US plug 12V power adapter
1 x HDMI cable
1 x USB cable type A male to micro male
